Details of Gabion Box manufacture in China

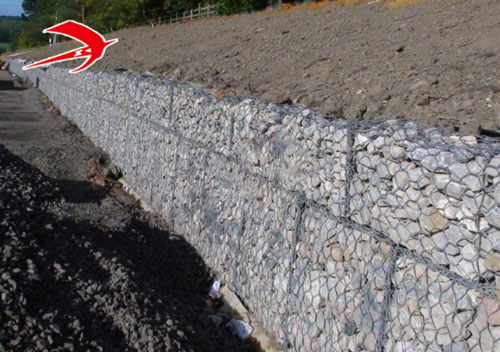

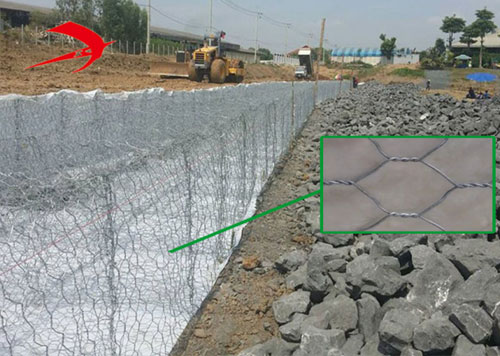

The gabion is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, military applications and landscaping.
Gabion boxes can be supplied in various lengths, widths and heights. In order to strengthen the boxes, all the edges of the structure shall be selvedged with wire of bigger diameter.
| Surface Treatment | Mesh Size mm | Mesh Wire mm | Selvedge Wire mm | Lacing Wire mm |
| Heavy Hot dipped galvanized or golfan galvanized and PVC coating | 60×80 | 2.0mm/3.0mm 2.2mm/3.2mm | 2.8mm/3.8mm 3.0mm/4.0mm | 2.8mm/2.0mm 2.0mm/3.0mm |
| 80×100 80×120 | 2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm | 3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm | 2.2mm/3.2mm | |
| 100×120 100×150 | 2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm | 3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm | 2.2mm/3.2mm | |
| 120×150 | 2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm | 3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm | 2.2mm/3.2mm |
Feature
Gabion baskets have some advantages over loose riprap because of their modularity and ability to be stacked in various shapes; they are also resistant to being washed away by moving water. Gabions also have advantages over more rigid structures, because they can conform to subsidence, dissipate energy from flowing water, and drain freely. Their strength and effectiveness may increase with time in some cases, as silt and vegetation fill the interstitial voids and reinforce the structure.
If you need the Gabion Box manufacture in China please contact me.
