Gabion Mattress Factory

Anping xinboyuan wire mesh products company is a professional Gabion mattress factory in Anping, China. The company mainly produce :gabion box, gabion mattress, wire mesh fence ,steel grating and other wire mesh products.
Anping Xinboyuan Wire Mesh Products Co.,Ltd was Gabion Mattress Factory established in 1990. Our products are widely used in industry, agriculture, cultivation, construction, transport and mining. By now we have already established friendly business relations with more than 80 countries from Southeast Asia, Europe, America,Middle East, Africa, and the sales amount and customers quadruple annually.

Xinboyuan company has more than 20 years export experience and have a perfect sales team with excellent qualities of responsible for customers, non-stop pace of the pursuit of progress, and provide good after-sales service.We always try our best to do "good quality, timely delivery, reasonable price and considerate service" . And that is the spirit of "quality survival, reputation and development principles of production”, won the good reputation of new and old customers both domestic and abroad.
Being a professional Gabion Mattress Factory with excellent equipment, advanced technology, we are quite confident in our products with good performance and competitive price.
Our company keeps the tenet of “Quality first, Customer most”. We will improve to become powerful due to the customers help form all of the world. We highly welcome the customers both domestic and abroad to visit our company and do mutual business.
The Gabion Mattress is also called the stone cage mattress, the Reno mattress, which means the thickness of the mesh made up by the machine is much smaller than the length and width of the Gabion mattress.It is used as the anti-scour structure of water embankment, bank slope and so on. It has the advantages of flexibility and adaptability to the foundation.

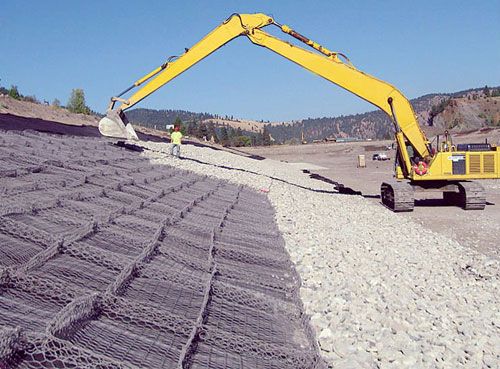

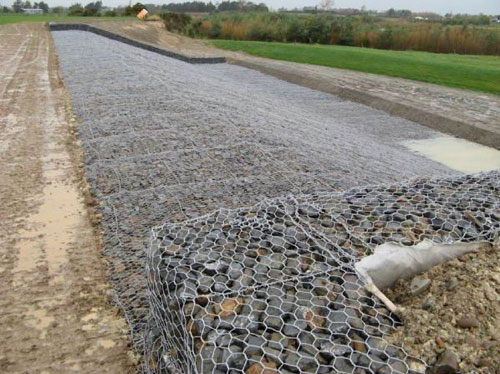

It is mainly used as the slope protection structure of river, bank slope and subgrade slope.It can prevent the river from being destroyed by water flow and wind waves, and realize the natural convection and exchange function between the water body and the soil under the slope to achieve the ecological balance.Slope planting green can add landscape and greening effect.
The difference between the gabion mattress and the gabion box is that the cushion is low in height and the structure is flat and large.The diameter of coated steel wire is finer than that of gabion, and it has two kinds of double diaphragms (steel wire diameter 2.0mm) and single diaphragms (2.2mm).It is commonly used as the double partition plate Renault pad, its advantages are the construction convenience, the protection of the slope can effectively prevent the stone collapse, increasing the anti-scour ability of the structure.

Gabion Mattress Specifications:
(1)Hole size: 60 * 80mm, 80 * 100mm, 80 * 120mm, 100 * 120mm, 120 * 150mm
(2) Wire:mesh wire, edge wire, and binding wire
(3) wire tension: no less than 38kg/m2 380N/mm
(4)Size:2x1x0.5m, 3x1x0.5m, 4x2x0.5m
(5) surface treatment
1. Electrogalvanizing.The maximum amount of zinc is 10g/m2.Anticorrosion sex difference
2. Hot galvanizing.The maximum amount of zinc can reach 300g/m2.Strong anticorrosion
3. Galfan (zinc aluminum alloy).It is divided into two materials: zinc-5% aluminum - mixed rare earth alloy wire, zinc - 10% aluminum mixed rare earth alloy wire.Superprotective strength
4. PVC plastic coated.The thickness of the package is usually 1.0mm thick, for example: 2.7mm and 3.7mm.
(5) partition: add a partition to each meter in the long direction of the cage net
(6) size: can be customized
(7) the range of aperture and silk diameter.
Gabion Mattress Material :
(1)Galvanized low carbon steel wire, 2.0 mm to 4.0 mm in diameter.
(2) aluminum zinc - 5% - mixed rare earth alloy wire: (also called gore van) wire.
(3) galvanized steel wire includes: high quality low carbon steel wire.
Gabion Mattress Features:
1. Improve the stability of river bed slope
2. Protect the river bed to prevent erosion 3. Provide the predetermined value of the roughness coefficient of the river bank (m)
4. The greening and ecological protection of slope protection and bank protection
5. Convenient construction
If you are looking for a professional Gabion mattress factory from China, you can contact us. We will reply your inquiry as soon as possible.

AnPing Xinboyuan Wire Mesh Products Co.,LTD

Emily

Room 2217, 22/F,Binjiangyougu Building, Xiumen street and Minsheng Road, qiaoxi district, Shijiazhuang city,Hebei Province,China
Tel(what's app): +86 13292878767
Skype: +86 13292878767
Fax:+86-318-7637111
Email:china@china-wiremesh.com.cn
Web:www.xby-wiremesh.com
