Gabion Mattress Manufacturer

Anping xinboyuan wire mesh products company is a professional Gabion mattress manufacturer in Anping,China. The company mainly produce:gabion box, gabion mattress, wire mesh fence ,steel grating and other wire mesh products.
The Gabion Mattress is also called the stone cage mattress, the Reno mattress, which means the thickness of the mesh made up by the machine is much smaller than the length and width of the Gabion mattress.It is used as the anti-scour structure of water embankment, bank slope and so on. It has the advantages of flexibility and adaptability to the foundation.

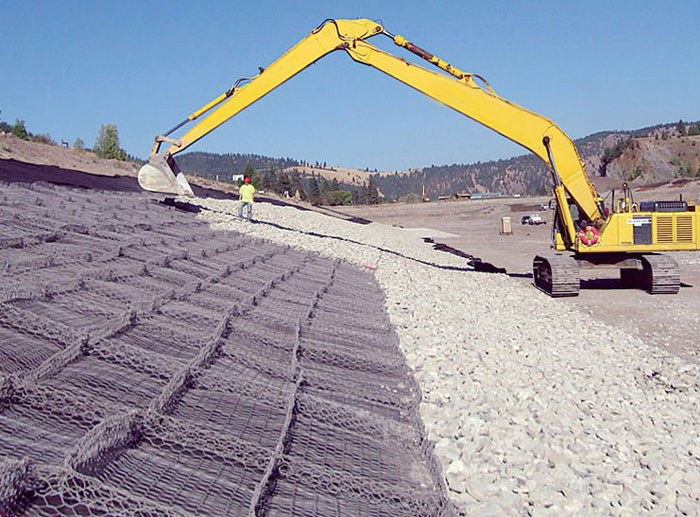

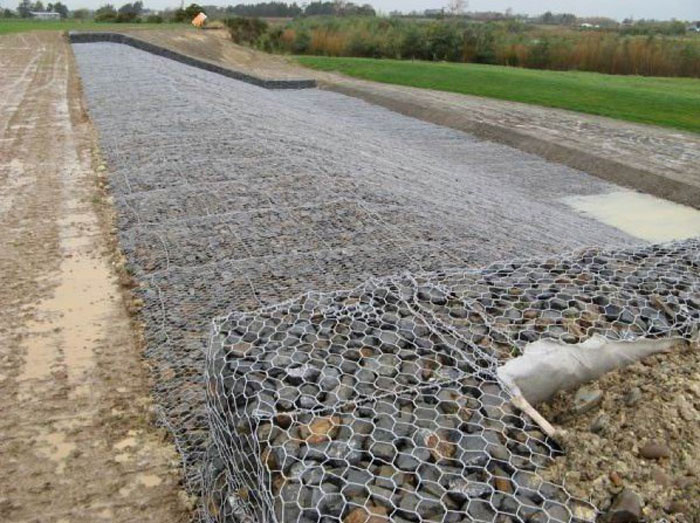

It is mainly used as the slope protection structure of river, bank slope and subgrade slope.It can prevent the river from being destroyed by water flow and wind waves, and realize the natural convection and exchange function between the water body and the soil under the slope to achieve the ecological balance.Slope planting green can add landscape and greening effect.
The difference between the gabion mattress and the gabion box is that the cushion is low in height and the structure is flat and large.The diameter of coated steel wire is finer than that of gabion, and it has two kinds of double diaphragms (steel wire diameter 2.0mm) and single diaphragms (2.2mm).It is commonly used as the double partition plate Renault pad, its advantages are the construction convenience, the protection of the slope can effectively prevent the stone collapse, increasing the anti-scour ability of the structure.
Specifications:
(1)Hole size: 60 * 80mm, 80 * 100mm, 80 * 120mm, 100 * 120mm, 120 * 150mm
(2) Wire:mesh wire, edge wire, and binding wire
(3) wire tension: no less than 38kg/m2 380N/mm
(4) surface treatment
1. Electrogalvanizing.The maximum amount of zinc is 10g/m2.Anticorrosion sex difference
2. Hot galvanizing.The maximum amount of zinc can reach 300g/m2.Strong anticorrosion
3. Galfan (zinc aluminum alloy).It is divided into two materials: zinc-5% aluminum - mixed rare earth alloy wire, zinc - 10% aluminum mixed rare earth alloy wire.Superprotective strength
4. PVC plastic coated.The thickness of the package is usually 1.0mm thick, for example: 2.7mm and 3.7mm.
(5) partition: add a partition to each meter in the long direction of the cage net
(6) size: can be customized
(7) the range of aperture and silk diameter.
Material :
(1)Galvanized low carbon steel wire, 2.0 mm to 4.0 mm in diameter, the tensile strength of steel wire shall not be less than 380 mpa, hot galvanizing protection on the surface of the steel wire, galvanized the thickness of the protective layer of production according to customer requirements, up to a maximum of 300 g/m2 galvanized quantity.
(2) aluminum zinc - 5% - mixed rare earth alloy wire: (also called gore van) wire, this is a kind of international emerging in recent years a new kind of a kind of new material, corrosion resistance is three times bigger than the traditional pure galvanized, steel wire can be up to 1.0 mm to 1.0 mm in diameter, the tensile strength of steel not less than 1380 mpa.
(3) galvanized steel wire includes: high quality low carbon steel wire, a layer of PVC protective coating on the surface of the steel wire, and then woven into various specifications of hexagonal net.This layer of PVC protection will greatly increase the protection of the high pollution environment, and make it integrate with the surrounding environment through the selection of different colors.
Features:
1. Improve the stability of river bed slope
2. Protect the river bed to prevent erosion 3. Provide the predetermined value of the roughness coefficient of the river bank (m)
4. The greening and ecological protection of slope protection and bank protection
5. Convenient construction
If you are looking for a professional Gabion mattress manufacturer from China, you can contact us. We will reply your inquiry as soon as possible. Anping xinboyuan wire mesh products company is your reliable gabion mattress manufacturer.
