HESCO BASTION

HESCO bastions stacked two units high around portable toilets inIraq.

The HESCO bastion is a modern gabion primarily used for flood control and military

fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and

used as a temporary to semi-permanent levee or blast wall against explosions or small-arms. It

has seen considerable use in Iraq and Afghanistan. It was developed in the late 1980s by a

British company of the same name.

Originally designed for use on beaches and marshes for erosion and flood control,the HESCO Bastion quickly became a popular security device in the 1990s.HESCO barriers continue to be used for their original purpose. They were used in 2005 to reinforce levees around New Orleans in the few days between Hurricane Katrina and Hurricane Rita.During the June 2008 Midwest floods 8,200 meters (9,000 yd) of HESCO barrier wall were shipped to Iowa.In late March, 2009, 10,700 meters (11,700 yd) of HESCO barrier were delivered to Fargo, North Dakota to protect against floods. In late September, 2016, 10 miles of HESCO barriers were used in Cedar Rapids, Iowa, for the fall flood of 2016.

Specifically, the brand name for the barrier is "Concertainer" (a portmanteau of "concertina" and "container"), with HESCO Bastion being the company that produces it.

Development

The HESCO bastion was originally developed by Jimi Heselden, a British entrepreneur and ex-coal miner, who founded HESCO Bastion Ltd. in 1989 to manufacture his invention.

Assembly

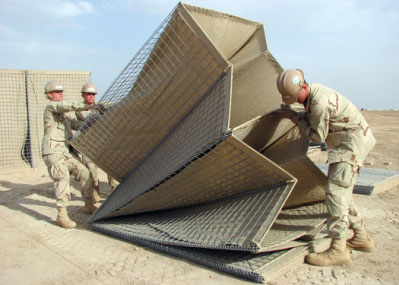

Assembling the HESCO bastion entails unfolding it and filling it with sand, soil or gravel, usually using a front end loader. The placement of the barrier is generally very similar to the placement of a sandbag barrier or earth berm except that room must generally be allowed for the equipment used to fill the barrier. The main advantage of HESCO barriers, strongly contributing to their popularity with troops and flood fighters, is the quick and easy setup. Previously, people had to fill sandbags, a slow undertaking, with one worker filling about 20 sandbags per hour. Workers using HESCO barriers and a front end loader can do ten times the work of those using sandbags.

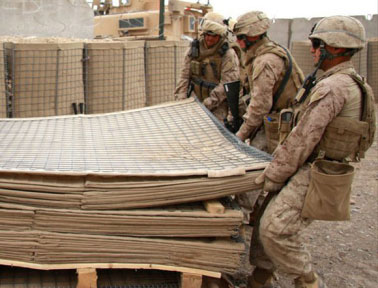

The HESCO barriers come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 1.4 by 1.1 by 9.8 metres (4.6 ft × 3.6 ft × 32.2 ft) to 2.1 by 1.5 by 30 metres (6.9 ft × 4.9 ft × 98.4 ft).

A new system of HESCO Bastion Concertainer developed specially for military use is deployed from a container, which is dragged along the line of ground where the barrier is to be formed, unfolding up to several hundred metres of barrier ready for filling within minutes.
