How to Install the Welded Gabion Box
Welded wire mesh, or welded wire fabric, or "weld mesh" is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing.
2.Application example:

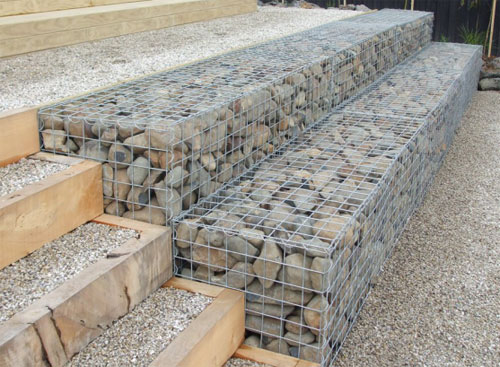

The exterior decoration of shell oil office building in the United States is mainly used for urban landscape and park landscape.The welding stone cage has simple construction and beautiful structure, low cost and easy installation. It is an ideal choice for garden decoration and slope greening.
3.Specification:
| Welded Gabion Basket |
| Material | Low Carbon Steel Wire / Galvanized Steel Wire |
| Surface Treatment | Zinc Coated Welded Gabion |
| PVC Coated Welded Gabion |
| Galfan Coated Welded Gabion |
| Wire Diameter | 3.0-6.0mm |
| Mesh Opening | 50*50mm | 75*75mm | 50*100mm | 100*100mm | 50*200mm |
| Dimension | 0.5x0.5x0.5m, 1x0.5x0.5m, 1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x0.5m, 3x1x1m, 4x1x0.5m, 4x1x1m or as request |
4.Installation
What you’ll need:
Materials:
6 sheets of 50*50cm welded wire mesh,
12 pcs of spiral wire.

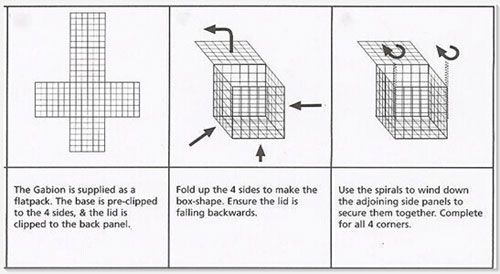

Step1, Welded gabion baskets will arrive by pallet network in flat packed form.
Step2, Unpack your baskets and fold the sides together leaving the lid open.
Step3, Secure the 4 corners of the boxes with the spiral wire as shown.

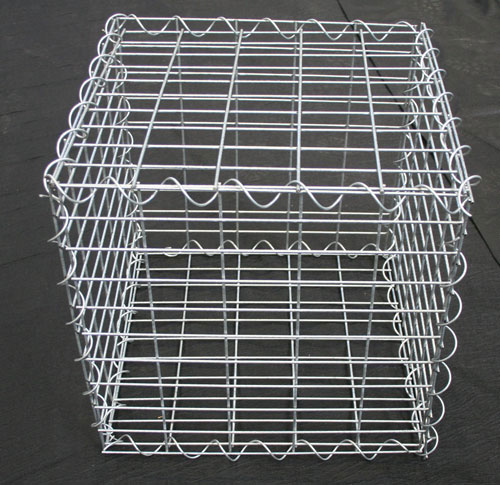

5.Finished Welded Gabion box
