Korea fence
BRC fence also named roll top fence,Korean fence,widely used in public and private properties areas which includes:car parks ,schools,factory,pedestrian zones,and residence. Its main market is in Singapore,South Korea and other southeast Asia countries.
Specification
BRC fence
BRC boundary fence
Roll top fence | Mesh Spacing (mm) | Wire Diameter (mm) |
| | Vertical wire | Horizontal wire | |
| type 1 | 50 | 150 | 5.0 |
| type 2 | 75 | 300 | 6.0 |
Panel Size
Height x Width
(mm)
| 900 x 2400 |
| | 1200 x 2400 |
| | 1500 x 2400 |
| | 1800 x 2400 |
| | 2100 x 2400 |
| | 2400 x 2400 |
Post
Specification
(mm) | UltragalPostø 60
(Stainless Steel U-clip & M6 Bolt 7 Nut) |
Feature
The struction of this fence is different with the other series, Both the top and the bottom sides have a trangle fold, in this way the barbed edge will be hidden in side, All the surface faced to people around is smooth, so it will avoid the accidental injury.
Application
Roll top fence usually be used in parking area, park or some other area in the city. Some engineer designed the roll top fence used to be as temporary protection such as in a building floor during construction.

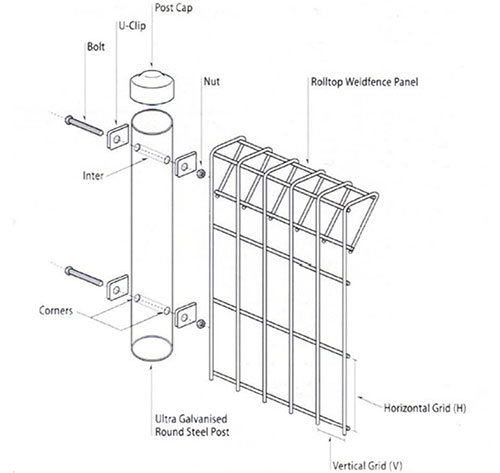

Drawing

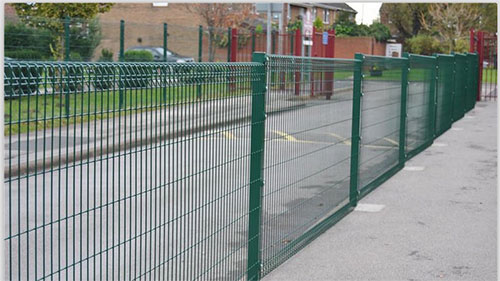

Pictures
