PVC Coated Gabion Box Manufacturer

Anping xinboyuan wire mesh products company is a professional PVC Coated Gabion Box Manufacturer in Anping, China. The company mainly produce :gabion box, gabion mattress, wire mesh fence ,steel grating and other wire mesh products.
In a few short years, it has been developed with 50 sets of wire drawing machines , 130 sets of weaving machines , of which including 30 sets of gabion mesh weaving machines, 25 sets of straightening and playing spring machines, 15sets of packaging compression processing machines ,20sets of fence machines , 4 sets of slope protection machines, 5 sets of steel grating production machinery and equipments , two wind dust network production assembly lines and 15 galvanized lines .
PVC Coated Gabion Box Specifications:
1.Gabion box materials: hot dipped galvanized wire and PVC coated galvanized wire , PVC color : dark green, gray ,black , Galfan Wire
2.Gabion box mesh wire: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm
3.Gabion box selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm
4.Gabion box mesh hole : 6*8cm,8*10cm,10*12cm,12*15cm
5.Gabion box Tie wire/lacing wire : 2.2mm, 3%,5%,8% of weight
6.Gabion box Zinc coating : 250-300/m2
7.Gabion box size : 1*1*1m, 2*1*1m,2*1*0.5m,3*1*1m, 4*1*1m,as your requestments.
8.Gabion box With diaphragms
Pvc Coated Gabion Mesh Specifications

Opening (mm)	WireDiameter (mm)	WireDiameter(PVCCoated) Inner/outside(mm)	Strands
60x80	2.0-2.8	2.0/3.0-2.5/3.5	3
80x100	2.0-3.2	2.0/3.0-2.8/3.8	3
80x120	2.0-3.2	2.0/3.0-2.8/3.8	3
100x120	2.0-3.4	2.0/3.0-2.8/3.8	3
100x150	2.0-3.4	2.0/3.0-2.8/3.8	3
120x150	2.0-4.0	2.0/3.0-3.0/4.0	3

PVC coated Gabion Box specifications

Length	Width	Height	Diaphragm	Volume	Tolerance
2.0m	1.0m	0.3m	1	0.6m3
3.0m	1.0m	0.3m	2	0.9m3
4.0m	1.0m	0.3m	3	0.2m3
2.0m	1.0m	0.5m	1	1.0m3	L+/-3%
3.0m	1.0m	0.5m	2	1.5m3	W+/-5%
4.0m	1.0m	0.5m	3	2.0m3	H+/-5%
1.0m	1.0m	0.5m	0	1.0m3
1.0m	1.0m	1.0m	0	1.5m3
2.0m	1.0m	1.0m	1	2.0m3
3.0m	1.0m	1.0m	2	3.0m3
4.0m	1.0m	1.0m	3	4.0m3

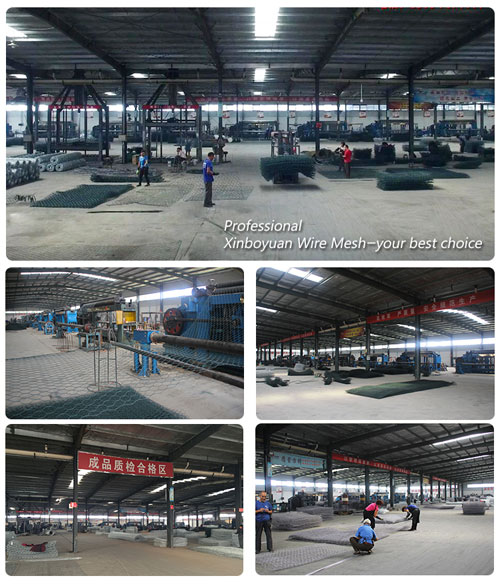

PVC Coated Gabion Box Manufacturer Work Shop

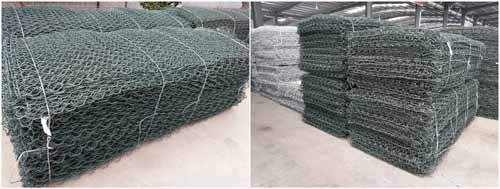

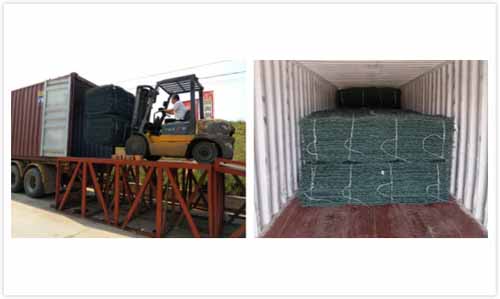

PVC Coated Gabion Box Packaging & Delivery

Packaging Details:
1. compacted before packaging.
2. Plastic packaging outside and on the pallet. or according to the customers' requirements
3. One 20'container can contain more than 8,000 square meters. 40' container can contain more than 15,000 square meters.
Delivery Detail:
7-15days after prepayment.
