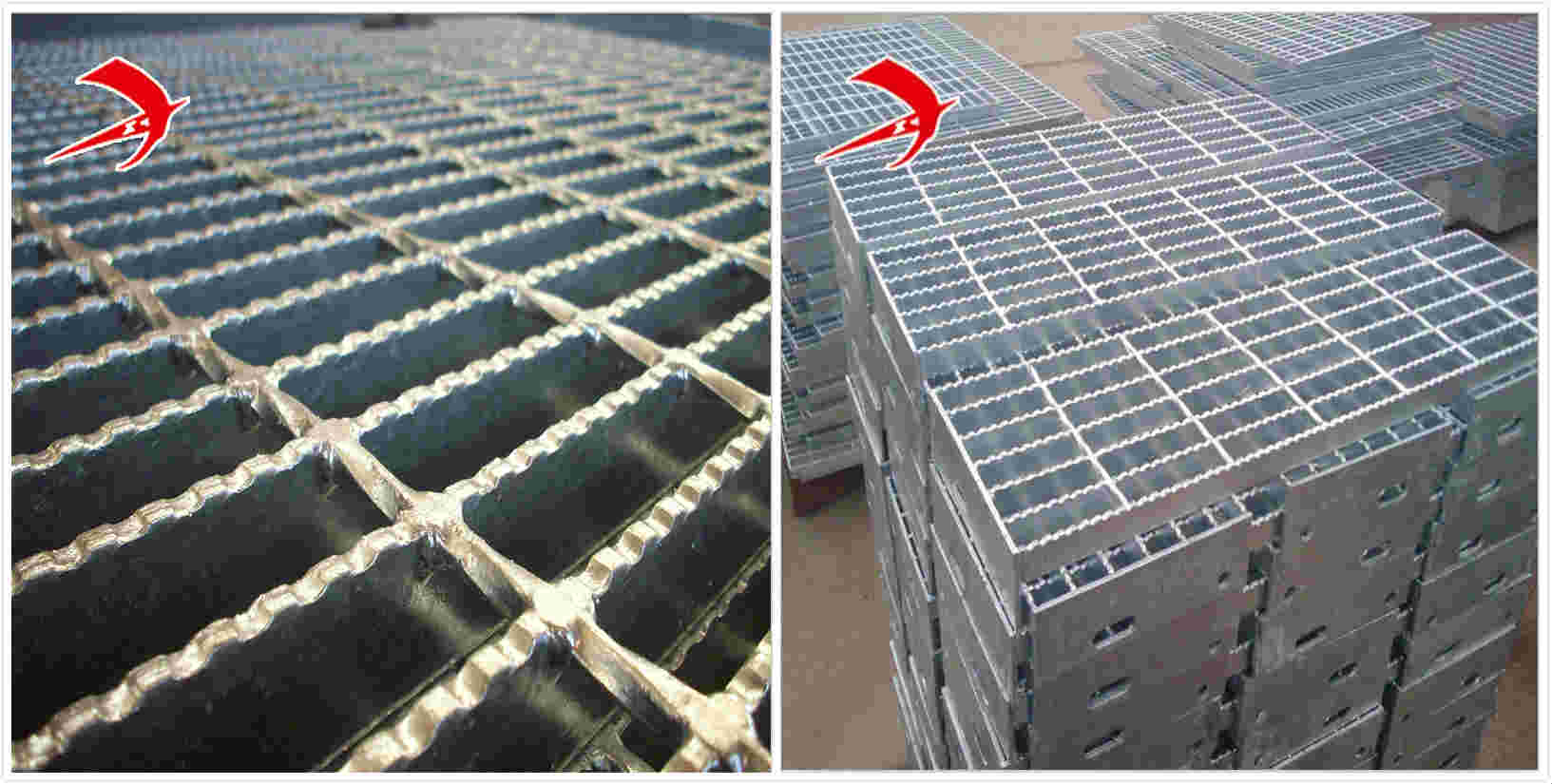

Serrated Steel grating
Serrated steel grating is one of the most widely used steel gratings. The bearing bar comes in the form of a serrated surface flat bar, commonly used for platforms, trench gratings, and stair treads, etc.
Serrated steel grating Features:
1) Bearing bar specification: 20 x 3 to 100 x 6
2) Bearing bar pitch: 12.5, 15, 30, 40, 60mm etc, also be according to client's requirement and 30, 40, 60mm are recommended
3) Cross bar pitch: 38, 50, 76, 100mm, also be according to client's requirement and 50, 100mm are recommended
4) Material: Mild steel or stainless steel
5) Surface treatment: Untreated, painting or hot DIP galvanizing
6) Steel Grating Standards:
A) China: YB/T4001-1998
B) USA: ANSI / NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
Serrated steel grating ordering:
1. The two sides communicate to confirm product specification.
2. Signed a contract.
3. Client pay 30% prepayment.
4. Production.
5. Packaging & Delivery.
6. Client finish the balance payments.
7. We send the original Bill of Lading to the client.
Contact me now for competitive price!
